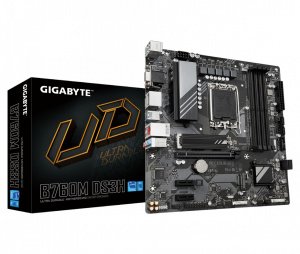

GIGABYTE B760M DS3H, DDR5, SATA3, USB3.2Gen2, DP, LGA1700 mATX

GIGABYTE B760M DS3H, DDR5, SATA3, USB3.2Gen2, DP, LGA1700 mATX

Naša oznaka: MAMA-21

Osnovna plošča za procesorje s podnožjem LGA1700 in ohišja mATX ali večja. Podpira DDR5, 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB),..

145,00 €cena vključuje ddv

brezplačna dostava


Specifikacije:
  • Znamka: GigaByte
  • Pakiranje: Kartonska embalaža
  • Dimenzije (Š x D x V): mATX
  • Kosov v kompletu: 1 kos
  • Model: B760M DS3H
  • Stanje: Novo
  • Garancija: 36 mesecev
  • Barva: Črna
  • PODNOŽJE: INTEL LGA 1700
  • ZA PROCESORJE: 13th/12th Generation Core i7/i5/i3/Pentium/Celeron
  • FORMAT: mATX format 24.4 cm x 24.4 cm
  • VEZNI ČIP: INTEL B760
  • POMNILNIK:
  • 4 x DDR5 DIMM ECC/non-ECC 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000MHz) do skupno 192GB kapacitete, dual channel in XMP podpora
  • GRAFIKA: DA - preko CPU
  • RAID: RAID 0, RAID 1, RAID 5, and RAID 10
  • RAZŠIRITVENE REŽE:
    • 1 x PCI Express 4.0/3.0 x16
    • 2 x PCI Express 3.0 x1
  • MREŽNA KARTICA: Realtek 2.5GbE LAN chip
  • ZVOČNA KARTICA: Realtek codec High Definition Audio (2/4/5.1/7.1-channel)
  • NOTRANJI PRIKLJUČKI:
    • 1 x 24-pin ATX main power connector
    • 1 x 8-pin ATX 12V power connector
    • 1 x CPU fan header
    • 3 x system fan headers
    • 1 x addressable LED strip header
    • 1 x RGB LED strip header
    • 2 x M.2 Socket 3 connectors
    • 4 x SATA 6Gb/s connectors
    • 1 x front panel header
    • 1 x front panel audio header
    • 1 x USB 3.2 Gen 1 header
    • 2 x USB 2.0/1.1 headers
    • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    • 1 x serial port header
    • 1 x parallel port header
    • 1 x S/PDIF Out header
    • 1 x Q-Flash Plus button
    • 1 x reset jumper
    • 1 x Clear CMOS jumper
  • ZUNANJI PRIKLJUČKI:
    • 2 x USB 2.0/1.1 ports
    • 1 x PS/2 keyboard/mouse port
    • 1 x D-Sub port
    • 1 x HDMI port
    • 2 x DisplayPorts
    • 3 x USB 3.2 Gen 1 ports
    • 1 x USB Type-C® port, with USB 3.2 Gen 2 support
    • 1 x RJ-45 port
    • 3 x audio jacks
  • DODATNO:
    • iTE® I/O Controller Chip
    • H/W Monitoring
    • Voltage detection
    • Temperature detection
    • Fan speed detection
    • Water cooling flow rate detection
    • Fan fail warning
    • Fan speed control
    • BIOS
    • 1 x 128 Mbit flash
    • Use of licensed AMI UEFI BIOS
    • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Unique Features
    • Support for GIGABYTE Control Center (GCC)
    • Support for Q-Flash
    • Support for Q-Flash Plus
    • Bundled Software
    • Norton® Internet Security (OEM version)
    • LAN bandwidth management software
  • Spletna stran proizvajalca
